Araçlar/Çağlar Küçükdumlu

Teknik özellik·1996·2JZ-GE VVT-i

NISSAN

S141996

PilotÇağlar Küçükdumlu Single TurboNOS
Dönem
800HPBeygir gücü
900NmTork
1996Yıl
2JZ-GE VVT-iMotor
NISSANMarka

Araç

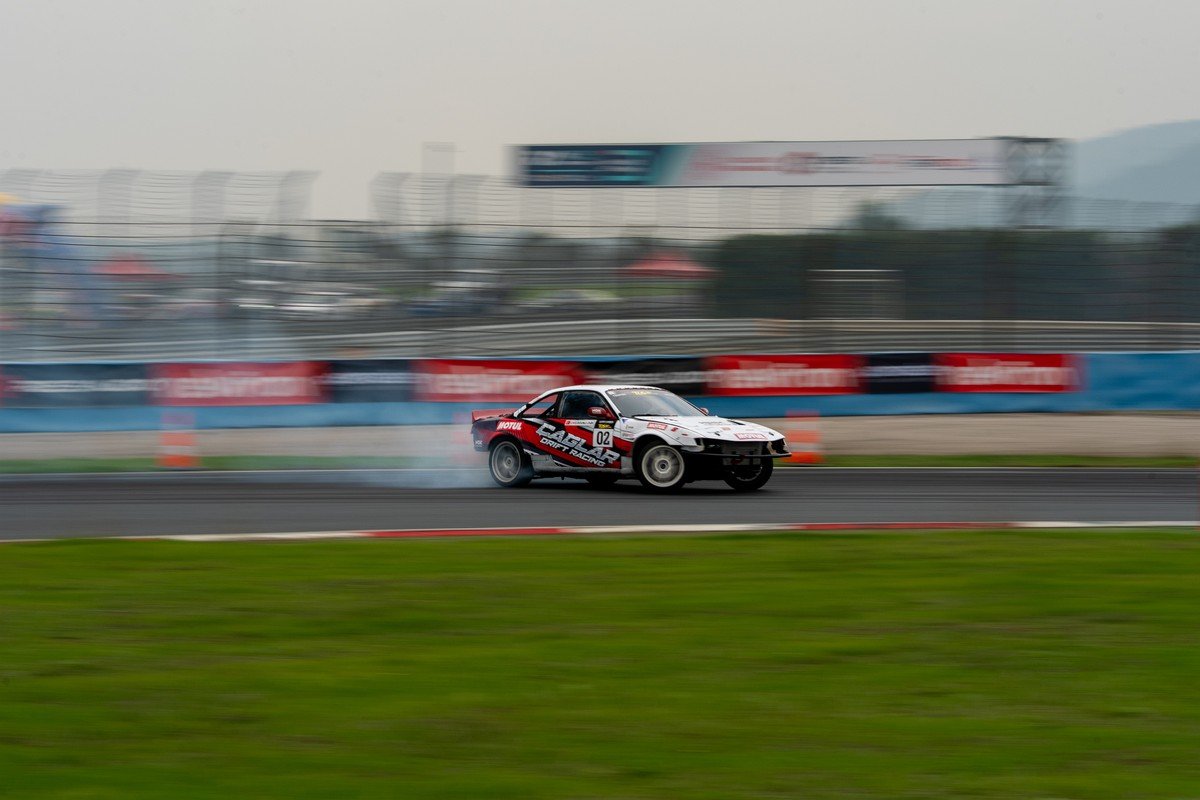

Nissan Silvia S14

Donanım

Motor ve güç

Motor
2JZ-GE VVT-i
Motor detay
2JZ-GTE block, 2JZ-GE VVT-i head, JE forged pistons 86mm, Manley H-Tuff rods, Kelford 272/278 cams, built by BPLAN Racing
Turboşarj
Garrett G35-990 Gen2, Garrett 45mm wastegate, Walton exhaust manifold
ECU
Ecumaster Black, Ecumaster PMU16, tune by Dr.Ecu
İnterkuler
Mishimoto 18 lt, custom piping
Radyatör
Custom rear mounted 12L, Mishimoto 2x fans, electric water pump
Yağ soğutucu
2x oil cooler with electric fan
Yakıt pompası
3x Bosch 044 Motorsport (external)
Yakıt deposu
OBP 30L, custom surge tank
Bujiler
NGK iridium

Aktarma

Şanzıman
Gearmotive ZF dogbox, Gearmotive IRP shifter
Debriyaj
Tilton 7.25" triple plate, PMC Motorsport flywheel
Diferansiyel
Winters quick change with skid plate
Şaft
Custom 2 piece
Akslar
GKN 6 bolt custom upgraded

Şasi ve süspansiyon

Süspansiyon
Wisefab front drift lock kit, Wisefab rear drop knuckle kit V2, BC Racing ER-Series 2 way coilovers with custom rate springs
Stabilizatör
Megan Racing adjustable rear
Jantlar
18 inch

Frenler

Fren kaliperleri
Z32 4 piston front, Z32 rear
Fren balataları
Project Mu D1 Spec (rear)

Güvenlik ve kokpit

Roll kafes
TOSFED approved
Koltuklar
Sparco race seat
Emniyet kemeri
Takata 6 point
Gösterge paneli
Ecumaster ADU5
Direksiyon
OMP, NRG short hub and quick release

Gövde

Body kit
Origin Labo Racing Line +75mm, fiber doors, hood and boot, polycarbonate windows
Arka kanat
Origin Labo ducktail wing

Parça listesi

134 kalem · 2026

Motor28

  1. 2JZ-GTE Engine Block
  2. 2JZ-GE VVT-i Cylinder Head
  3. JE Ultra Forged Pistons 86mm
  4. Manley H-Tuff Forged Rods
  5. Supertech Complete Valvetrain Set
  6. Kelford Cams 272-278 degrees 9.95mm/9.95mm
  7. Kelford Adjustable Exhaust Cam Gear
  8. ARP Head Studs
  9. ACL Race Bearing Set
  10. OEM Gasket Kit
  11. OEM Oil Pump
  12. Gates Timing Belt & OEM tensioner
  13. OEM Timing Cover
  14. OEM VANOS Solenoid
  15. OEM Starter Motor
  16. ATI Damper
  17. Billet Valve Covers
  18. Engine Overhaul and Re-Build by BPLAN Racing
  19. FMIC Intake Manifold
  20. Walton Exhaust Manifold
  21. Garrett 45mm Wastegate
  22. Garrett G35-990 Gen2 Turbo
  23. NGK R8 ignition coils
  24. NGK iridium ignition sparks
  25. Custom 4" Exhaust
  26. Mishimoto 18lt intercooler & custom piping
  27. 100mm Greddy air filter & custom pipe
  28. Custom engine mounts

Elektronik21

  1. Ecumaster Black ECU
  2. Ecumaster PMU16
  3. Ecumaster ADU5 Advanced Display Unit
  4. Ecumaster 12 button CAN bus keypad
  5. Ecumaster USB to CAN module
  6. Ecumaster EGT to CAN module
  7. Ecumaster 6x EGT sensor
  8. Ecumaster Data Logger
  9. GM Fuel Flex sensor
  10. MAC boost solenoid sensor 3 port
  11. Bosch Motorsport IAT Sensor
  12. Bosch Motorsport Knock Sensor
  13. Bosch 82mm drive by wire kit
  14. Bosch oil pressure & temp sensor
  15. Bosch fuel pressure & temp sensor
  16. AEM Wideband
  17. Sparco Electric Kill Switch
  18. OEM Alternator Upgraded
  19. Varta 60A Battery and plastic cover
  20. Custom engine wiring & body wiring BPLAN Racing
  21. ECU & PMU Tune by Dr.Ecu

Aktarma ve süspansiyon25

  1. Wisefab front drift lock kit
  2. Wisefab rear suspension drop knuckle kit V2
  3. BC Racing ER-Series 2 Way Coilovers with custom rate springs
  4. Gearmotive ZF Dogbox Transmission
  5. Custom transmission mount
  6. PMC Motorsport Adapter Plate
  7. PMC Motorsport Flywheel
  8. Tilton 7.25" Triple Plate Race Clutch Set
  9. IRP Racing Giubo (flex disc)
  10. Bosch Clutch Slave cylinder 21521161874
  11. Custom 2 piece driveshaft
  12. Winters Quick Change Differential with skid plate
  13. Rear subframe modification
  14. Rear subframe solid bushing
  15. GKN 6 bolt custom upgraded axles
  16. Z32 4 piston Front Brake kit
  17. Z32 Rear Brake kit x2
  18. Project Mu D1 Spec Rear Brake Pads
  19. Driftshop front braided brake hoses
  20. SS Braided AN rear brake lines x2
  21. OEM Steering Rack
  22. GKTech solid steering rack bushing
  23. Valeo Electric steering pump & oil lines
  24. Megan Racing Adjustable Rear Sway Bar
  25. MGT 80mm rear spacer & 10mm front spacer

Yakıt, soğutma ve yağlama17

  1. Bosch 2200cc injector set
  2. Aeromotive fuel regulator
  3. 3x Bosch 044 motorsport fuel pump (external)
  4. SS braided AN fuel lines
  5. Aeromotive 100 micron fuel filter
  6. Radium 10 micron fuel filter
  7. OBP Fuel tank 30L
  8. Custom Fuel Surge Tank
  9. Custom rear mounted radiator 12L
  10. VW radiator over fill tank
  11. Mishimoto 2x radiator fans
  12. Electric Water Pump
  13. SS water lines from engine to water radiator
  14. NOS dry kit -75hp
  15. Custom Oil catch can
  16. 2x Oil cooler with electric fan
  17. Oil filter sandwich plate & custom SS AN lines & oil filter

Şasi ve gövde14

  1. 1996 Nissan Silvia S14 Bare Chassis
  2. Chassis reinforcement & sand blasting & argon welding
  3. TOSFED approved roll-cage
  4. Custom Front bash bar & Power brace - BPLAN
  5. Custom Rear bash bar - BPLAN
  6. Custom Transmission tunnel - BPLAN
  7. Origin Labo Racing Line +75mm body kit
  8. Origin Labo Ducktail Wing
  9. Fiber doors
  10. Fiber head lamp cover
  11. Fiber brake lights cover
  12. Fiber hood
  13. Fiber boot
  14. Polycarbonate windows

Kokpit9

  1. Sparco Race Seat
  2. Sparco seat mount
  3. Takata 6 point seat belt
  4. OMP Steering Wheel
  5. NRG Short Hub & NRG Quick release
  6. Sikky hydraulic hand brake kit & Wilwood 0.62" master cylinder
  7. Gearmotive IRP Shifter
  8. Fiber dashboard
  9. Custom Floor Panels - BPLAN

Yedek parçalar20

Yedek parçalar, araçta takılı değil.

  1. Wheels 18inch - 16x
  2. Tilton 7.25" Triple Plate Race Clutch Set
  3. Gearmotive Dogbox Spares (Dog Rings, Dog Gears)
  4. IRP Racing Giubo (flex disc)
  5. Bosch Clutch Slave cylinder 21521161874
  6. OEM Steering Rack x2
  7. Valeo Electric steering pump
  8. Wisefab Ackermann Washers x3 set
  9. Front Tie rods x2
  10. Wilwood 3/4" brake master cylinder
  11. Valeo 3/4" brake master cylinder
  12. GKN 6 bolt custom upgraded axles
  13. Winters quick change Gears Set x3 (Set06, Set07A, Set09)
  14. Wisefab Rear Tie rods & camber arms V1
  15. NOS Bottle x3
  16. NOS Dry Jets (50HP, 100HP)
  17. Bosch 82mm drive by wire pedal
  18. NGK R8 ignition coils
  19. NGK iridium ignition sparks
  20. Tomei Oil Pan Baffle Plate Type F1 with OEM Front Pan
